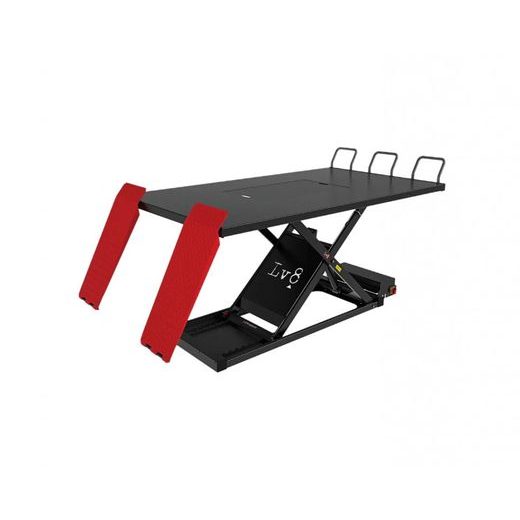

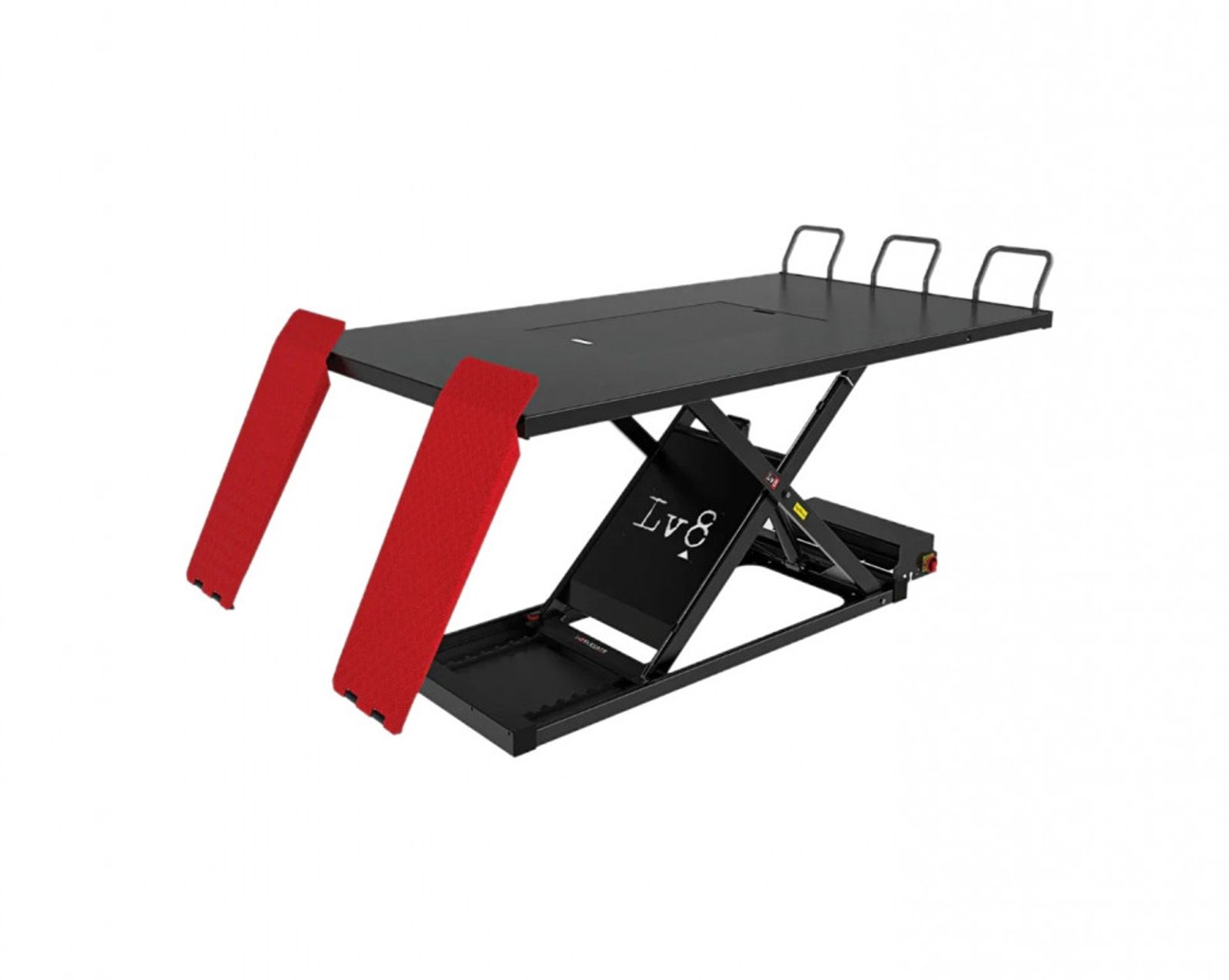

Motorcycle lift LV8 GOLDRAKE QUAD IN-GROUND VERSION EG600QEF

The Goldrake quad lift 600 kg , designed and built in LV8,  is available in three different engine types (with foot pump, air pump and electro-hydraulic control unit) and  it is the most suitable scissor lift for the maintenance of 4-wheel vehicles such as quads, ATVs and lawn mower tractors.

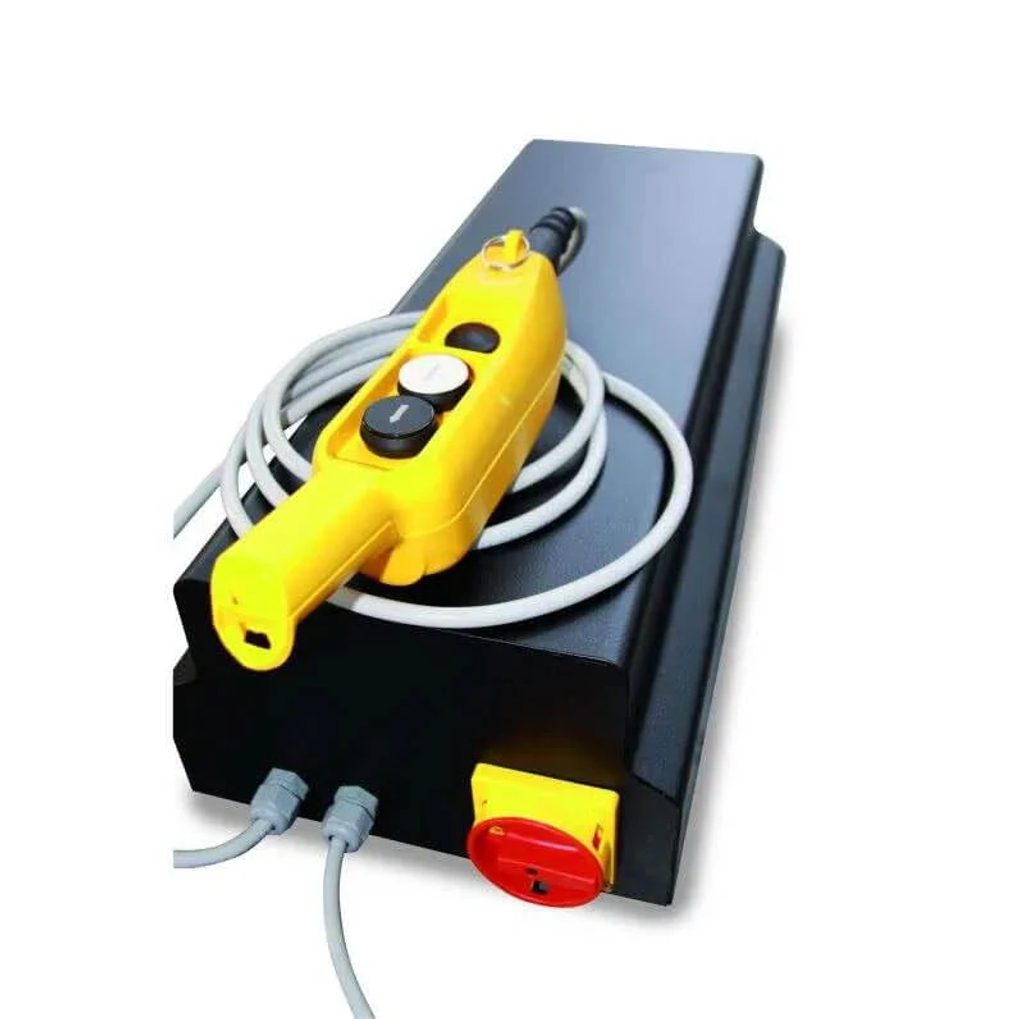

Our LV8 Goldrake motorcycle lifts are supplied with a control unit, integrated into the base, protected by a powder coated sheet-metal cabinet with interlocked safety switch and a button panel equipped with magnet.

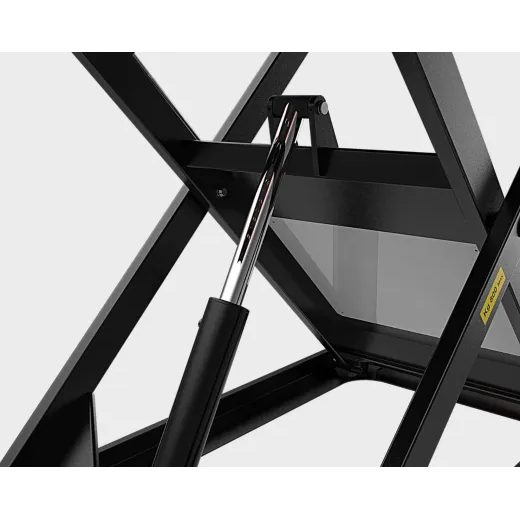

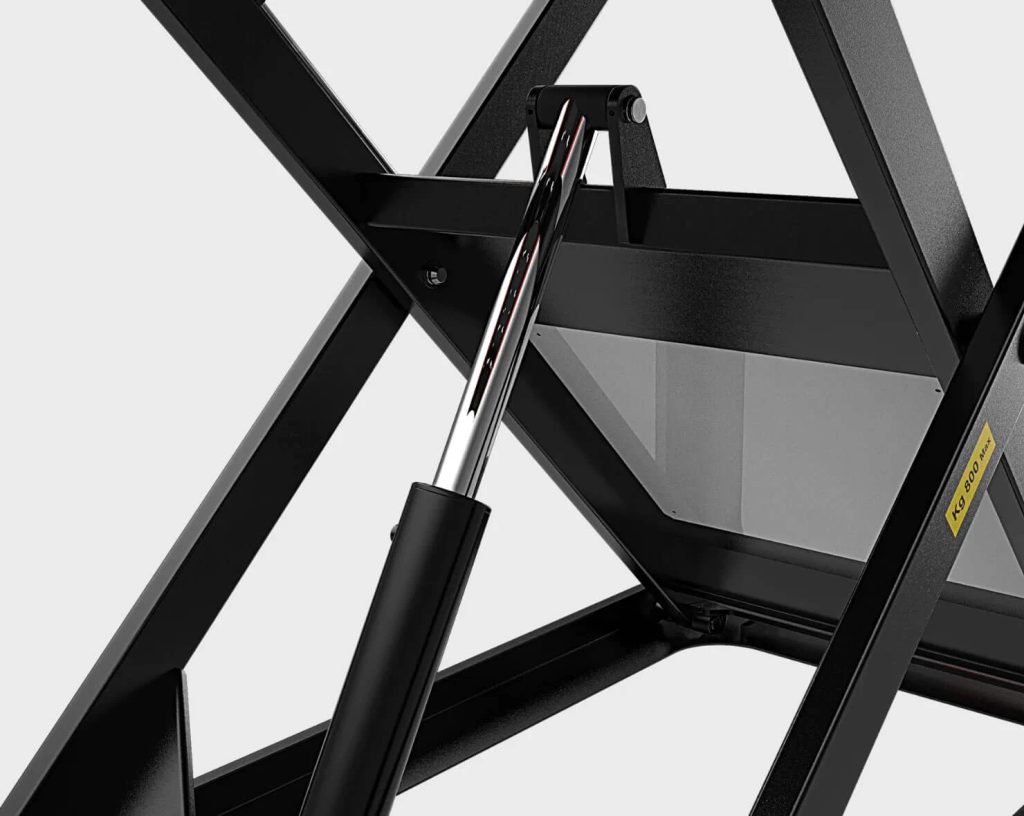

Our LV8 Goldrake lifts are equipped with a hydraulic cylinder, having a self-lubricating system of the seals and a mechanical lever with manual insertion, ensuring pre-set parking positions for total operator safety.

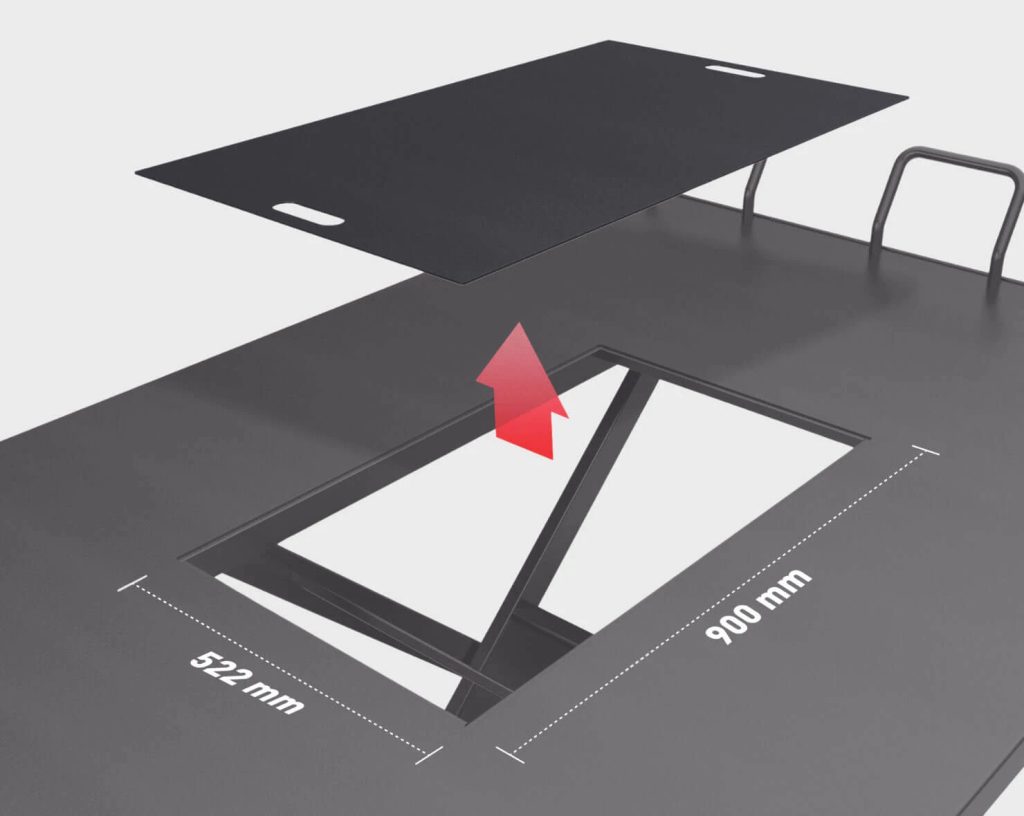

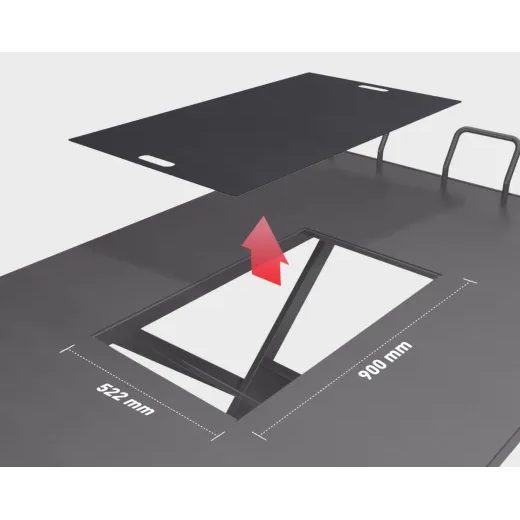

The platform of the LV8 Goldrake Quad lift is provided with removable central gate to allow underbody works and with
3 safety bars for 2-3-4 wheels vehicles.

DETAILS:

• Also available with air or foot pump
• Electrical, mechanical and hydraulic safety devices
• Capacity 600 kg
• “Dead man” controls 24v
• Integrated electro-hydraulic unit

WARNING: This model EG600QEF is designed for in-ground installation.
